So I have Nginx Proxy Manager running on OPNsense. Then I have Cloudflare proxying NPM.

Prerequisites

  • OPNsense
  • Home Assistant
  • Cloudflare
  • Domain name

Goals

  1. Access Home Assistant on local network at http://homeassistant.localdomain:8123.
  2. Access Home Assistant on from any network at https://ha.doiotyourself.com.

How to

Home Assistant

  1. Settings > System > Network

    Host Name The name your instance will have on your network: homeassistant

    Home Assistant URL Internet: https://ha.doiotyourself.com/ Local Network: Automatic

  2. Update configuration.yaml and save lists of all reverse proxies in new directory configuration/trusted_proxies/

    http:
    use_x_forwarded_for: true
    trusted_proxies: !include_dir_merge_list configuration/trusted_proxies/
    ip_ban_enabled: true
    login_attempts_threshold: 5

    configuration/trusted_proxies/ip-my-proxy.yaml

    # IP Address of my reverse proxy
    ---
    - !secret proxy_ip_address

    and add a new line to secrets.yaml

    proxy_ip_address: 192.168.107.1

    configuration/trusted_proxies/ips-v4.yaml

    # https://www.cloudflare.com/ips-v4
    ---
    - 173.245.48.0/20
    - 103.21.244.0/22
    - 103.22.200.0/22
    - 103.31.4.0/22
    - 141.101.64.0/18
    - 108.162.192.0/18
    - 190.93.240.0/20
    - 188.114.96.0/20
    - 197.234.240.0/22
    - 198.41.128.0/17
    - 162.158.0.0/15
    - 104.16.0.0/13
    - 104.24.0.0/14
    - 172.64.0.0/13
    - 131.0.72.0/22

    configuration/trusted_proxies/ips-v4.yaml

    # https://www.cloudflare.com/ips-v6
    ---
    - 2400:cb00::/32
    - 2606:4700::/32
    - 2803:f800::/32
    - 2405:b500::/32
    - 2405:8100::/32
    - 2a06:98c0::/29
    - 2c0f:f248::/32
  3. Restart Home Assistant

Cloudflare

  1. dash.cloudflare.com > Websites > Home Click on your domain name

  2. DNS > Records Create a new A or AAAA record. Point to the IP Address of the OPNsense WAN interface you want to hit. Proxy status: Proxied

  3. SSL/TLS > Overview Your SSL/TLS encryption mode is Full (strict)

  4. Rules > Page Rules Create new rule to bypass cache

  5. SSL/TLS > Origin Server Set Authenticated Origin Pulls to Enabled Create Certificate

    Save the certificate to OPNSense

OPNsense

  1. System: Trust: Certificates Save the Cloudflare Origin Certificate created in the step above as ‘Cloudflare Origin Certificate’***

  2. System: Settings: Administration Select a TCP port other than 443 for the Web GUI and Disable web GUI redirect rule.

  3. System: Firmware: Plugins Install os-nginx.

  4. Services: Nginx: Configuration

    • New Upstream Server Upstream Server

    • New Upstream Upstream

    • Download the NAXSI (WAF) rules Naxsi WAF Policy

    • New Location Location

    • Location Continued and Advanced mode Select Force HTTPS and WebSocket Support

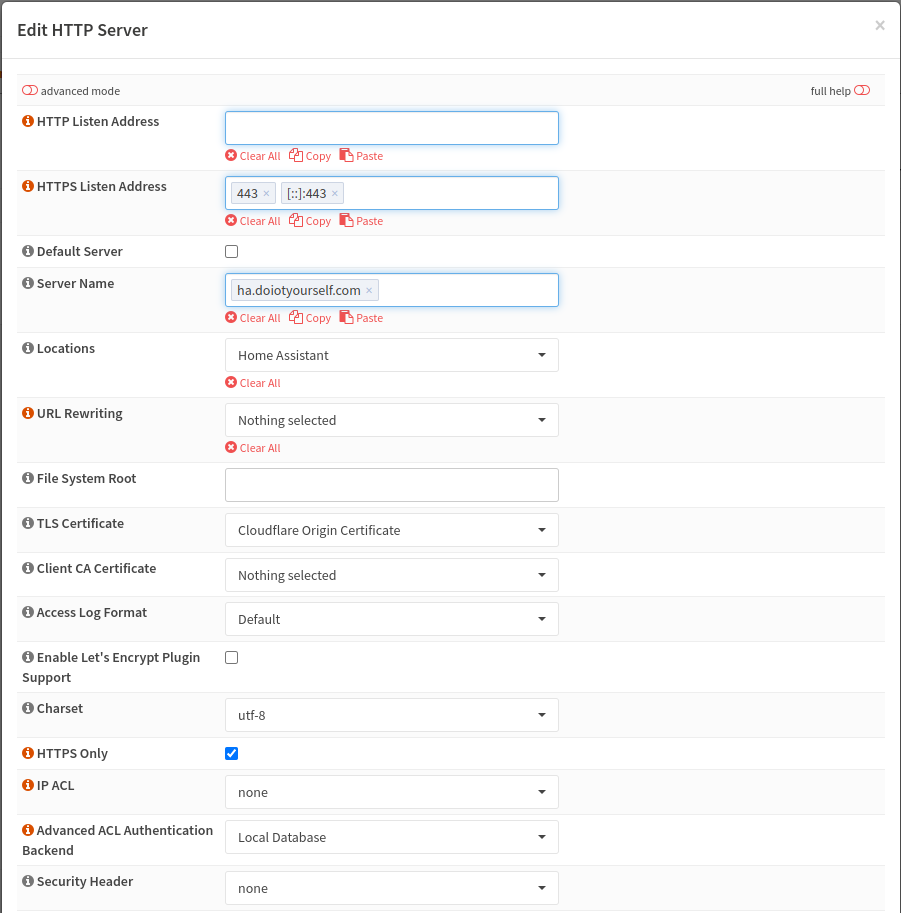

    • New HTTP Server Remember to enter the Cloudflare Origin Certificate

    • General Settings Select Enable nginx

  5. Firewall: Alias Create Alias

  6. Firewall: Rules: WAN New rule

Future Improvements

Use split DNS to resolve hostnames so to redirect the clients on the local network to the local IP address of OPNsense Nginx Proxy Manager rather than routed through Cloudflare’s servers and back to the local network. This is low priority as I’m mostly using the Home Assistant iPhone App and can set different hostnames for Internal URL http://homeassistant.localdomain:8123 and External URL https://ha.doiotyourself.com.
